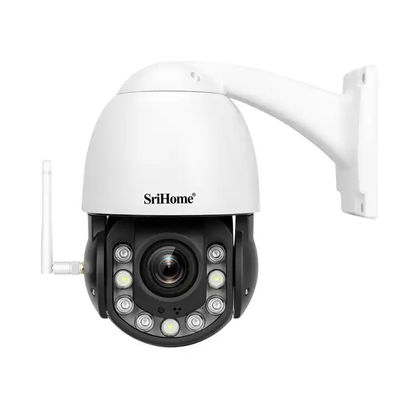

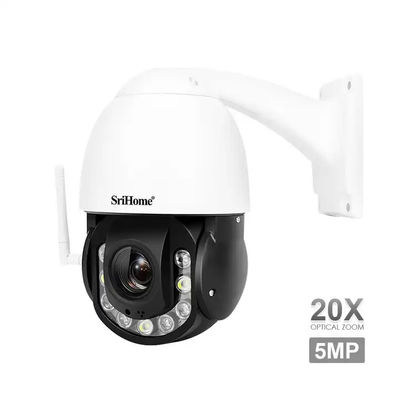

5MP 20x Zoom High Speed Monitor Wireless Wifi Outdoor CCTV Security Camera System PTZ Camera

  • 5MP 20x Zoom High Speed Monitor Wireless Wifi Outdoor CCTV Security Camera System PTZ Camera
  • 5MP 20x Zoom High Speed Monitor Wireless Wifi Outdoor CCTV Security Camera System PTZ Camera
Place of Origin China
Brand Name Tsdatech
Certification CE, RoHS，FCC
Model Number SH040
Minimum Order Quantity 2(sample)
Packaging Details Single package size: 21.5X18.5X12.5 cm

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Sensor CMOS Data Storage Options SD Card
Viewing Angle Field Of View: 50.2 ~ 2.9° Wide Dynamic Digital Wide Dynamic
Leave a Message
Product Description

5MP 20x Zoom High Speed Monitor Wireless Wifi Outdoor CCTV Security Camera System PTZ Camera

Featurers
1:Zoom: 20x optical zoom lens,3x digital zoom, Lens:4.7mm~94mm
2:QHD: 5MP,1920P(2560*1920),H.265
3:Audio: Built-in microphone and speaker, support two-way audio
4:Sensor: Starlight level, full-color night vision, digital wide dynamic
5:Waterproof IP66, use for indoor and outdoor
6:Record: Support 128GB TFcard for recording, playback and download recordings in SriHome APP
7:Pan/Tilt: Pan:355°, Tilt:90°
8:Light: High power white light, support infrared light mode, white light mode and alarm mode
9:WiFi: Support 2.4GHz & 5GHz dual-band Wi-Fi, less interference, more stable transmission
10:Preset: Supports 16 lens presets and 128 ptz presets
11:Support humanoid alarm,,customizable motion detection alarm area, improve alarm accuracy
12:Support onvif protocol, can be used with NVR, support IE browser

Specification

PTZ Camera
Model
SH041
System
Main Processor
Multi-core high- performance processor
Sensor
1/2.7 inch, 5 megapixel progressive scan CMOS
Common Codecs
H.265
Lens
Lens Parameter
10x optical zoom Focal length:4.9mm~94mm,
Aperture
F1.8-F3.9
Angle of View
Field of View: 50.2 ~ 2.9°
Video
Resolution
1920P(2560*1920), 1440P(2560*1440),720P(1280*720P),VGA(480*360)
Image Frame Rate
15~25fps
Automatic Exposure
Adjust the image automatically to view clearly
Lighting Mode
Alarm: Spotlight will on when motion detected, and the alarm recording defaults in infrared.
White Light: Spotlight on, night image will be color, and you can adjust the light brightness.
Infrared: Spotlight off, night image is black and white
Wide Dynamics
digital-WDR
IR-Cut
Built-in IR Cut, no color deviation indoor or outdoor
Zoom
Support 3x digital zoom
Audio
Audio
Built-in microphone and speaker, support two-way audio
Pan&Tilt
Pan/Tilt
Pan:355°, Tilt: 90°
Track
Support humanoid tracking
Preset
Support 16 lens presets, 128 ptz presets
Alarm
Alarm
Motion detection alarm, humanoid alarm (need to enable motion detection at the same time)
Alarm Notification
Push alarm notifications to your smartphone
Advanced Zone Detection
Set customized motion detection zones to control what you’re monitoring
Privacy
Privacy Protection
The system defaults that the first user is the administrator, and other users need to be authorized by the administrator to access
the camera
Privacy Block
Set up to 4 privacy areas,improve privacy protection
Network
Remote Access
P2P
Wireless
2.4G (11bng) mixed & 5G 11a/n/ac mixed,Support WEP, WPA, WPA2 encryption
Network Connection
1.QR Code 2. AP Hotspot 3. Network cable
AP Hotspot
With wireless access point, camera can be connected to phone directly without network
Wired
RJ-45
Protocol
Support : Onvif
Software
APP/PC
iOS /Android (SriHome APP) /VMS, ispy, Blue Iris,
Record
Record Mode
Motion detection alarm recording, 7/24 recording
Resolution
HD mode (1920P), SD mode (360P)
Storage
MicroSD card (Max 128GB), download recordings to the computer and phone
File size
About 10G/24h
Playback
Mobile APP playback, NVR
Others
Product Type
4.5 outdoor PTZ dome camera,use indoor or outdoor
Protection Class
IP66
Power Supply
AC:100~240V, DC:12V/1A
Working Temperature
-10°C ~50°C
Working Humidity
10%~90% RH
Weight
N.W: 880g G.W: 1280g(Note: Final Weight will depend on the actual product)
Accessories
1. Power adapter, 2. Manual, 3. Screw bag, 4. Antenna
Size
Product size: 260*185*155 mm (L*W*H)
Packaging size: 165*165*280mm(L*W*H)
Certification
CE, FCC , RoHS



5MP 20x Zoom High Speed Monitor Wireless Wifi Outdoor CCTV Security Camera System PTZ Camera 0

5MP 20x Zoom High Speed Monitor Wireless Wifi Outdoor CCTV Security Camera System PTZ Camera 1



Why choose us?



Shenzhen TsdTech Technology Co., Limited Is a Factory Supplier, Import And Export Manufacturer.



OEM&ODM are available, welcome to contact us!


1. Logo printing/laser on the product
2. Customized color box, change outer content or box type or make a luxury box
3. Customized manual
4. Customized color
5. Custom a brand new function/apperance similar product



FAQ



Q. Are you a manufacturer or a trading company?
A: We are a one-stop professional manufacturer with BSCI, 8 production lines, own experienced R&D team, providing OEM & ODM service.

Q: What is the MOQ?
A: The general MOQ is 1000pcs, and we could support trial orders with small quantities to test the market.Sample is available for testing within one day

Q: Could I customize the logo on the product and packaging?
A: Yes, customized logo and packaging are available,and we also can support other OEM service,such as customized color,function etc....

Q: What are the lead time of the sample and bulk order?
A: Sample: 1~3 days if in stock.Bulk order: 15~35 working days.

Q: How do you control the quality?
A: We have a perfect QC system (IQC, IPQC, FQC, OQC team),14 tests on production lines, and 100% aging testing before packaging.
