Two Way Audio Outdoor Waterproof 3MP 5X PTZ Camera CCTV Camera Security Camera System

  • Two Way Audio Outdoor Waterproof 3MP 5X PTZ Camera CCTV Camera Security Camera System
  • Two Way Audio Outdoor Waterproof 3MP 5X PTZ Camera CCTV Camera Security Camera System
  • Two Way Audio Outdoor Waterproof 3MP 5X PTZ Camera CCTV Camera Security Camera System
Place of Origin China
Brand Name Tsdatech
Certification CE, RoHS，FCC
Model Number SH028
Minimum Order Quantity 2(sample)
Packaging Details Single package size: 21.5X18.5X12.5 cm

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Style Floodlight Camera, PTZ Camera Data Storage Options Memory Card, NVR, Micro SD Card, Full HD
TF Card Record Support 128G Micro SD Card IR CUT Built-in IR-Cut, No Color Cast
Leave a Message
Product Description

Two Way Audio Outdoor Waterproof 3MP 5X PTZ Camera CCTV Camera Security Camera System

Features:
1. FHD: 3MP, 1296P(2304*1296), H.264 / H.265
2. Audio: Built-in Mic & Speaker, supports two-way audio
3. PTZ : Pan: 350°, Tilt:170°


4. Lens: 2.8-12mm Lens, 5x Optical zoom, IR 40m
5.Storage: MicroSD card (Max 128GB), Local and FTP storage
6. AP Hotspot: With wireless access point, camera can be connected to phone directly without router
7. Alarm: Support Motion detectioin alarm, phone push alarm
8. Onvif : Support Onvif protocol, can work with NVR
9. Software: Support Windows PC(HCMS, Onvif NVR, Blue Iris, ispy), Internet Explorer

Model No.: SH028
System Main Processor HiSilicon 3516E, High- performance processor
Sensor 1/2.7”, 3Megapixel progressive scan CMOS
Image Compression H.264 / H.265 ( Default is H.264, can be set H.265 by IE browser )
Lens Lens Parameter Focal length: 2.8-12mm, 3MP
Zoom 5x Optical zoom
Angle of View 26°--103°
Video Resolution 1296P(2304x1296) / 1080P(1920x1080) / 720P(1280x720) / VGA(640x480)
Image Frame Rate Main stream: 3MP(15fps - 25fps) / Sub stream: VGA(25fps)
Automatic Exposure Adjust the image automatically to view clearly
Infrared Mode Automatic
Night Visibility 6 PCS array IR illumination LEDs, IR range up to 40 meters
Min.Illuminatioin 0.01 Lux / F1.2 (With IR Illuminator)
Filter Switch(IR-Cut) Built-in IR Cut, no color deviation indoor or outdoor
Zoom App supports 3x digital zoom
Audio Audio Built-in Mic & Speaker, supports two-way audio
Pan&Tilt Pan/Tilt Pan:350°, Tilt: 170°
Alarm Alarm Motion detection alarm
Alarm Notification Push alarm notifications to your smartphone
Advanced Zone Detection Set customized motion detection zones to control what you’re monitoring
Privacy Privacy Protection System defaults the first user as administrator, other users accessing the camera need administrator's authorization, otherwise they can't view it
Privacy Block Set up to 4 privacy areas
Network Remote Access P2P
Ethernet RJ-45
Wireless 2.4G IEEE 802.11 b/g/n, supports WEP, WPA & WPA2 Encryption
AP Hotspot With wireless access point, camera can be connected to phone directly without router
Protocol IPV4, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, DDNS, FTP, IP Filter, QoS
Interoperability Onvif
Software SriHome App iOS & Android
Windows PC CMS HCMS, ONVIF Device Manager, Blue Iris, ispy etc.
Web Browser Internet Explorer
Record Record Mode Motion detection alarm recording, 7/24 recording
Record Standard HD mode(1296P/1080P/720P) / SD mode(360P)
Storage MicroSD card (Max 128GB), Local and FTP storage
Playback Remote and local record playback
Others Product Type 2.5 inch metal dome type for outdoor use
Ingress Protection IP66
Power Supply DC 12V
Working Temperature -10 to +50℃
Working Humidity 10% to 90% RH
Weight N.W.:938g, G.W.: 1350g (Note: Actual Weight Final)
Accessories Adaptor, User Manual, Screws, Antenna & LAN Cable
Size Item size: 110*200*170mm (LxWxH)
Packaging size: 233*215*145mm (LxWxH)
Certification CE, FCC & RoHS
Warranty Limited 2-Year Warranty

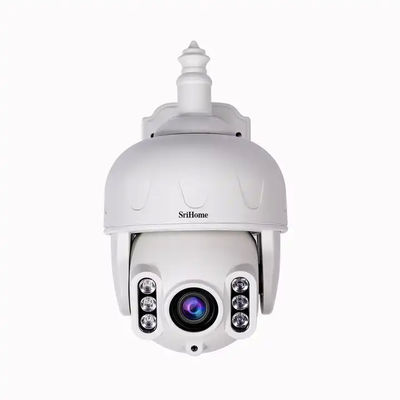

Two Way Audio Outdoor Waterproof 3MP 5X PTZ Camera CCTV Camera Security Camera System 0

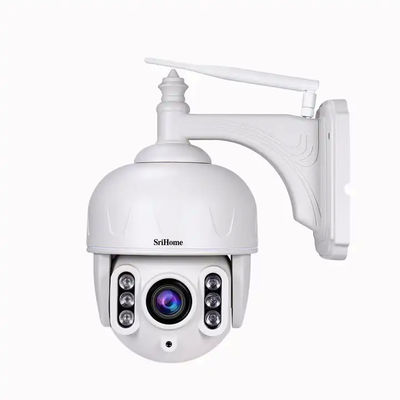

Two Way Audio Outdoor Waterproof 3MP 5X PTZ Camera CCTV Camera Security Camera System 1

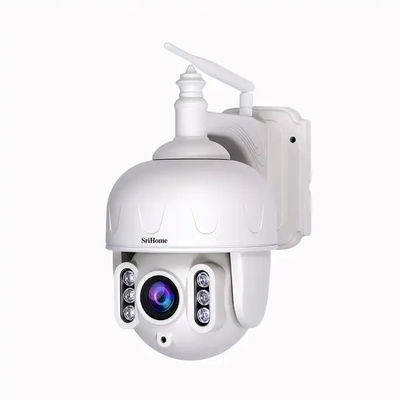

Two Way Audio Outdoor Waterproof 3MP 5X PTZ Camera CCTV Camera Security Camera System 2



Why choose us?



Shenzhen TsdTech Technology Co., Limited Is a Factory Supplier, Import And Export Manufacturer.



OEM&ODM are available, welcome to contact us!


1. Logo printing/laser on the product
2. Customized color box, change outer content or box type or make a luxury box
3. Customized manual
4. Customized color
5. Custom a brand new function/apperance similar product



FAQ



Q. Are you a manufacturer or a trading company?
A: We are a one-stop professional manufacturer with BSCI, 8 production lines, own experienced R&D team, providing OEM & ODM service.

Q: What is the MOQ?
A: The general MOQ is 1000pcs, and we could support trial orders with small quantities to test the market.Sample is available for testing within one day

Q: Could I customize the logo on the product and packaging?
A: Yes, customized logo and packaging are available,and we also can support other OEM service,such as customized color,function etc....

Q: What are the lead time of the sample and bulk order?
A: Sample: 1~3 days if in stock.Bulk order: 15~35 working days.

Q: How do you control the quality?
A: We have a perfect QC system (IQC, IPQC, FQC, OQC team),14 tests on production lines, and 100% aging testing before packaging.
